Work Breakdown Structure (WBS) Management

Work Breakdown Structure (WBS) is one of the most critical project management tools that helps break down complex projects into manageable, smaller components. This guide will walk you through the fundamentals of WBS management, including practical examples and best practices for effective project planning.

What is Work Breakdown Structure?

A Work Breakdown Structure is a hierarchical decomposition of the total scope of work to be carried out by the project team. It organizes and defines the total scope of the project, where each descending level represents an increasingly detailed definition of the project work.

Key Benefits of WBS:

  • Clear Project Scope: Provides a visual representation of all project deliverables
  • Better Estimation: Enables more accurate time and cost estimates
  • Resource Planning: Helps identify required resources for each work package
  • Risk Management: Makes it easier to identify potential risks at granular levels
  • Progress Tracking: Facilitates monitoring and controlling project progress
  • Team Communication: Improves understanding among stakeholders

WBS Structure and Components

The 100% Rule

The WBS must include 100% of the work defined by the project scope and capture all deliverables – internal, external, and interim – in terms of the work to be completed, including project management.

Hierarchical Levels

  1. Level 1: Project Title/Final Deliverable
  2. Level 2: Major Deliverables or Phases
  3. Level 3: Sub-deliverables
  4. Level 4+: Work Packages (lowest level)

WBS Creation Process

Step 1: Define Project Scope

Start with a clear understanding of project objectives, deliverables, and constraints.

Step 2: Identify Major Deliverables

Break down the project into major components or phases.

Step 3: Decompose Deliverables

Continue breaking down each major deliverable into smaller, manageable components.

Step 4: Create Work Packages

Define the lowest level of work that can be:

  • Estimated (time and cost)
  • Scheduled
  • Monitored
  • Assigned to a responsible party

WBS Management Sheet

A well-structured WBS sheet should include the following elements:

WBS Management Sheet

The WBS sheet above demonstrates a practical approach to organizing project work with:

  • WBS ID: Unique identifier for each work package
  • Task Description: Clear description of the work to be performed
  • Deliverables: Expected outcomes for each task
  • Dependencies: Relationships between tasks
  • Assigned Resources: Team members responsible for each work package
  • Priority Level: Task priority for resource allocation

Key Components of the WBS Sheet:

  1. Hierarchical Numbering: Each element has a unique WBS code (1.1, 1.2, 1.1.1, etc.)
  2. Task Names: Descriptive names for each work component
  3. Work Package Details: Specific activities that need to be completed
  4. Responsibility Assignment: Clear ownership for each task
  5. Deliverable Specifications: Expected outputs and quality criteria

Estimation and Time Management

Accurate estimation is crucial for successful project delivery. The estimation process should be integrated with your WBS structure.

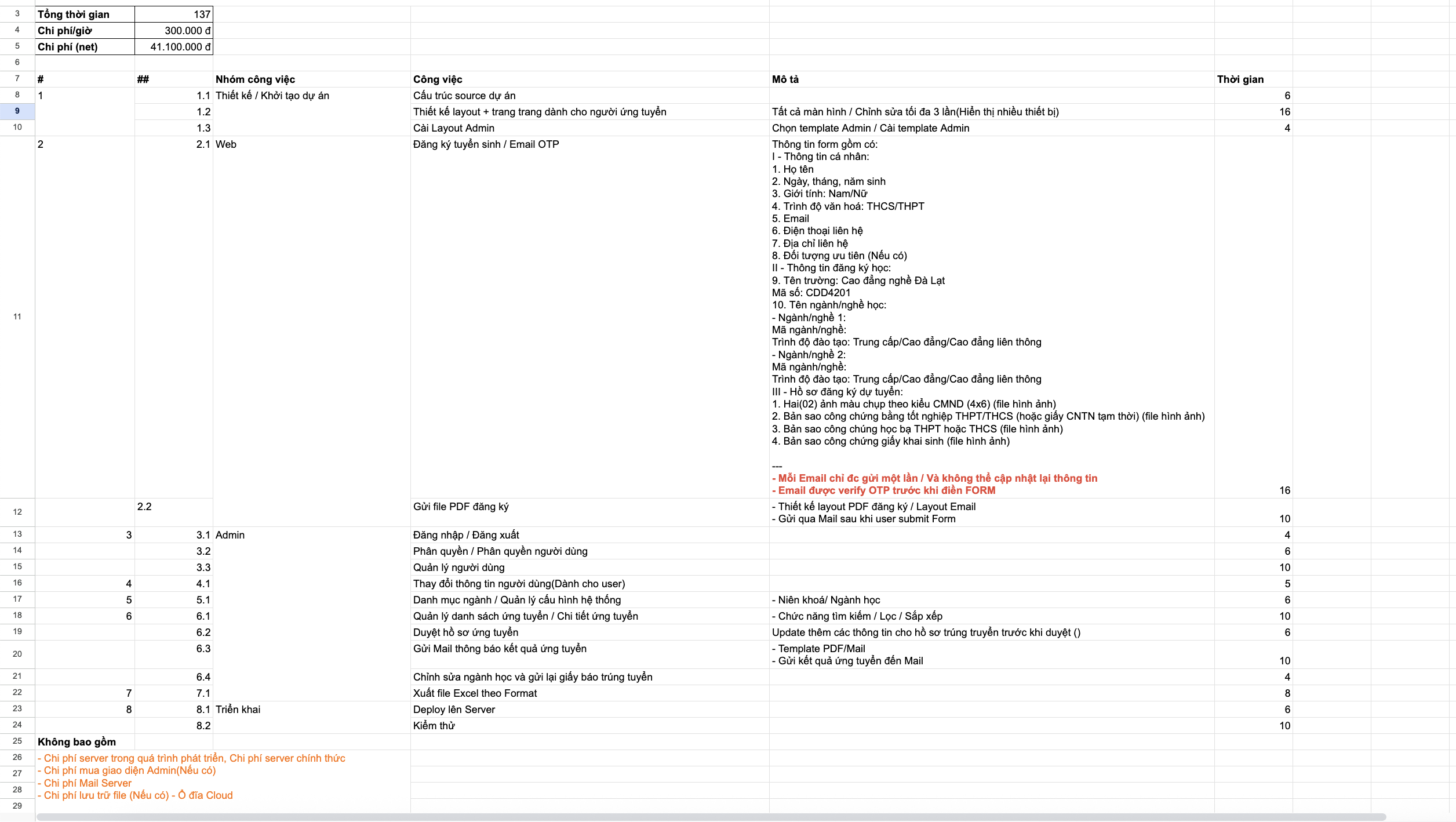

Estimation Sheet

The estimation sheet complements the WBS by providing:

  • Time Estimates: Duration for each work package
  • Resource Requirements: Human resources needed
  • Cost Calculations: Budget allocation for each component
  • Risk Factors: Contingency planning for uncertainties
  • Dependencies Mapping: Critical path identification

Estimation Techniques:

  1. Expert Judgment: Leveraging experience from similar projects
  2. Analogous Estimation: Using historical data from comparable projects
  3. Parametric Estimation: Using statistical relationships between variables
  4. Three-Point Estimation: Considering optimistic, pessimistic, and most likely scenarios
  5. Bottom-Up Estimation: Aggregating estimates from work package level

Best Practices for WBS Management

1. Keep It Simple and Clear

  • Use clear, concise language
  • Avoid technical jargon when possible
  • Ensure understanding across all stakeholders

2. Focus on Deliverables

  • Structure around deliverables, not activities
  • Each element should represent a tangible outcome
  • Avoid mixing deliverables with activities

3. Maintain Appropriate Level of Detail

  • Don't over-decompose (too granular)
  • Don't under-decompose (too high-level)
  • Aim for work packages of 8-80 hours duration

4. Ensure Completeness

  • Include all project work
  • Account for project management activities
  • Consider integration and testing phases

5. Regular Updates and Reviews

  • Review WBS regularly as project evolves
  • Update based on change requests
  • Maintain version control

WBS Templates and Tools

Common WBS Formats:

  1. Hierarchical/Tree Structure: Traditional org-chart style
  2. Tabular Format: Spreadsheet-based approach
  3. Mind Map: Visual, creative representation

Recommended Tools:

  • Microsoft Project: Professional project management
  • Excel/Google Sheets: Simple, accessible option
  • Lucidchart: Visual diagramming
  • Smartsheet: Collaborative project management
  • Notion: All-in-one workspace
  • Jira: Agile project management

Integration with Project Management Methodologies

Traditional/Waterfall Projects

  • WBS aligns with sequential phases
  • Clear deliverables at each stage
  • Detailed upfront planning

Agile Projects

  • Epic/Feature breakdown structure
  • User story decomposition
  • Sprint planning integration
  • Continuous refinement

Hybrid Approaches

  • Combination of detailed planning and iterative delivery
  • Phased WBS development
  • Adaptive planning techniques

Common Pitfalls and How to Avoid Them

1. Over-Decomposition

Problem: Breaking down work into unnecessarily small pieces Solution: Use the 8-80 hour rule for work packages

2. Activity-Based WBS

Problem: Focusing on activities instead of deliverables Solution: Structure around "what" will be delivered, not "how"

3. Incomplete Scope Coverage

Problem: Missing work components Solution: Use structured review process and stakeholder validation

4. Poor Naming Conventions

Problem: Unclear or inconsistent naming Solution: Establish and follow naming standards

5. Static WBS

Problem: Not updating WBS as project evolves Solution: Regular reviews and version control

Measuring WBS Effectiveness

Key Performance Indicators:

  1. Scope Completeness: Percentage of actual work covered by WBS
  2. Estimation Accuracy: Variance between planned and actual effort
  3. Change Request Frequency: Number of scope changes required
  4. Stakeholder Understanding: Survey results on WBS clarity
  5. Project Success Rate: Correlation with project success metrics

Advanced WBS Techniques

1. Rolling Wave Planning

  • Detailed planning for near-term work
  • High-level planning for future phases
  • Progressive elaboration as more information becomes available

2. WBS Dictionary

  • Detailed descriptions for each WBS element
  • Acceptance criteria and quality standards
  • Resource requirements and assumptions

3. Integrated Change Control

  • Formal process for WBS updates
  • Impact assessment procedures
  • Stakeholder approval workflows

Case Study: Software Development Project

Project: E-commerce Platform Development

Level 1: E-commerce Platform

Level 2:

  • 1.0 Project Management
  • 2.0 Analysis & Design
  • 3.0 Development
  • 4.0 Testing
  • 5.0 Deployment
  • 6.0 Training & Documentation

Level 3 (Example for Development):

  • 3.1 Frontend Development
  • 3.2 Backend Development
  • 3.3 Database Development
  • 3.4 API Development
  • 3.5 Integration Development

Level 4 (Example for Frontend):

  • 3.1.1 User Interface Design
  • 3.1.2 Product Catalog Module
  • 3.1.3 Shopping Cart Module
  • 3.1.4 User Authentication Module
  • 3.1.5 Payment Processing Module

Conclusion

Work Breakdown Structure is a fundamental project management technique that provides the foundation for successful project planning and execution. When properly implemented, WBS enhances project visibility, improves estimation accuracy, and facilitates better communication among stakeholders.

Key takeaways:

  • Structure matters: A well-organized WBS is crucial for project success
  • Balance detail levels: Neither too granular nor too high-level
  • Focus on deliverables: What will be produced, not how it will be done
  • Maintain and update: WBS is a living document that evolves with the project
  • Integrate with other tools: Combine with estimation, scheduling, and risk management

By following the principles and best practices outlined in this guide, project managers can create effective WBS structures that serve as the backbone for successful project delivery.

References and Further Reading

  • Project Management Institute (PMI) - PMBOK Guide
  • Work Breakdown Structure: A Practical Guide to Development and Application
  • Agile Estimating and Planning by Mike Cohn
  • Microsoft Project Official Documentation
  • IEEE Standards for Work Breakdown Structure

This guide provides a comprehensive overview of WBS management techniques. For specific implementation guidance or advanced topics, consider consulting with project management professionals or taking specialized courses in project management methodologies.
